24 TO 96 BOBBINS
Armouring Machine
Rigid Fork / Cage Type Armouring for Wire & Strip Screening
ORIGINAL PRODUCT PHOTO
JSK FACTORY DIRECT
More Images (2 Photos Available)
Key Engineering Advantages
- Accommodates both round galvanized wire and flat steel strip armouring simultaneously or individually
- Pre-forming wire die head ensures wire stays tightly wrapped without bird-caging
- Heavy duty steel gearboxes running in continuous oil bath
AUTHENTIC SPECIFICATIONS & DESCRIPTION
Overview & Application

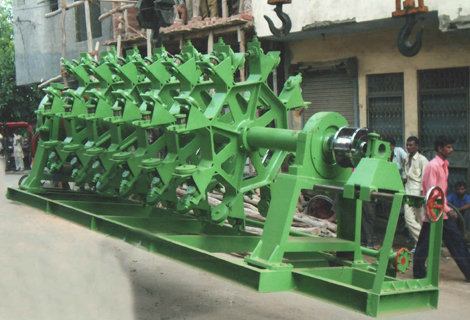

Rigid Armouring Machine is manufactured in different designs i.e. Fork/Cage Type. The number of bobbins & size of machines manufactured as per customer requirement.
Armouring machine is manufactured in various ranges i.e. 24 bobbins, 30 bobbins, 36 bobbins, 48 bobbins, 54 bobbins, 60 bobbins, 72 bobbins, 84 bobbins, 90 bobbins, 96 bobbins in single or multi cages.
The machine is used for Steel Round or Flat Wire Armouring and Copper-Screening of Cables for LT & HT Cables.
| Technical Specifications: Armouring Machine | |
|---|---|
| Construction Type | Fork Type or Cage Type Multi-Bobbin Layout |
| Bobbin Range | 24, 30, 36, 48, 54, 60, 72, 84, 90, 96 Bobbins |
| Armouring Types | Round Galvanized Steel Wire, Flat Steel Strip, Copper Wire Screening |
| Cable Application | LT & HT Power Cables, Mining Cables, Control Cables |
| Tensioning System | Individual Mechanical Friction / Pneumatic Bobbin Tension Control |
| Haul-Off System | Dual Wheel Capstan |
| Take-Up Compatibility | Up to 3200mm Portal or Cantilever Take-Up Stands |
Need a Customized Configuration?
We custom manufacture bobbin sizes, speeds, and line layouts for your plant.
