6 TO 30 BOBBINS
Rigid Stranding Machine
Fork & Cradle Type Strander for Copper, Steel & Aluminum

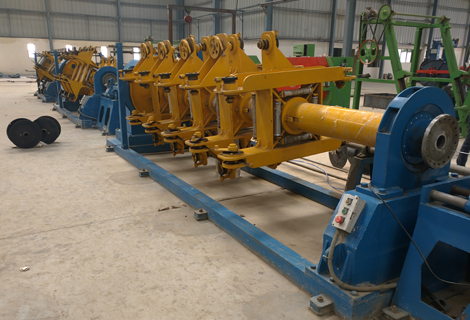

ORIGINAL PRODUCT PHOTO
JSK FACTORY DIRECT
More Images (2 Photos Available)
Key Engineering Advantages
- Heavy-duty alloy steel rotor cages dynamically balanced for vibration-free running at top RPM
- Pneumatic bobbin pintle clamping with mechanical safety locking pins
- Automated centralized oil lubrication system for main bearing pedestals
- Independent digital pitch setting via Industrial HMI touchscreen without gear changing
- Electronic wire break detection with instant emergency pneumatic caliper braking
AUTHENTIC SPECIFICATIONS & DESCRIPTION
Overview & Application
The Rigid Stranding Machine is used for Stranding Copper, Steel and Aluminum. Stranding unilay and reverse Concentric, round, Compressed, Compacted or Sector Shaped (Straight or Prespiralled) as per Customer Requirements.
This may be Fork or Cradle type. This Rigid Stranding Machine is used for making Stranded Conductors for LT Cables & HT Cables (ACC/AAAC/ACSR).
| Technical Specifications: Rigid Stranding Machine | |
|---|---|
| Conductor Materials | Copper, Aluminum, Aluminum Alloy & Steel |
| Stranding Configurations | Unilay & Reverse Concentric, Round, Compacted, Sector Shaped |
| Machine Construction | Heavy-Duty Fork Type or Cradle Type with Dual Bearings |
| Bobbin Sizes | 500mm, 630mm |
| Number of Bobbins | 6, 12, 18, 24, 30 Bobbins in Multi-Cage Setup |
| Target Cable Products | LT Cables, HT Cables, AAC, AAAC, ACSR Overhead Conductors |
| Line Control | Independent Electric Shaft or Line Shaft with Digital Pitch Control |
