LARGE POWER CABLES
Drum Twister
High-Productivity Laying-Up Solution for LT, HT & Aerial Bunched Cables

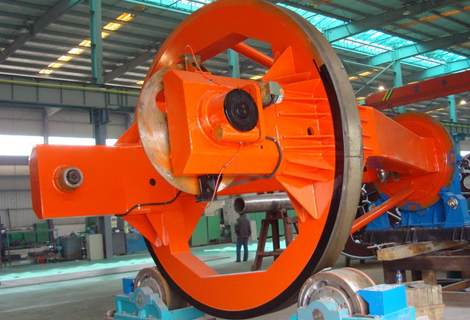

ORIGINAL PRODUCT PHOTO
JSK FACTORY DIRECT
More Images (2 Photos Available)
Key Engineering Advantages
- Hydraulic roll-on/roll-off drum loading and motorized pintle clamping
- Advanced PLC automation with touchscreen SCADA diagnostic display
- In-line steel tape, copper tape, and water-blocking yarn applicators
AUTHENTIC SPECIFICATIONS & DESCRIPTION
Overview & Application
Drum Twister is a highly productive solution for laying up of cables. It is suitable for LT / HT / Aerial Bunch Cables.
It is facilitated with sector correction unit to lay up shaped and pre-spiralled cables with maximum efficiency.
| Technical Specifications: Drum Twister | |
|---|---|
| Target Cable Range | LT, HT Power Cables, Milliken Conductors, Aerial Bunched Cables (ABC) |
| Take-Up Drum Size | 1600mm to 3600mm Reel Sizes (Weight up to 35 Tons) |
| Pay-Off Configuration | Rotating or Non-Rotating Multiple Stand Pay-Offs |
| Sector Correction | Motorized Sector Correction & Prespiralling Unit for shaped cores |
| In-Line Operations | Steel Taping, Copper Wire Screening, Non-Metallic Binding in single pass |
| Laying Pitch | Wide pitch range from 200 mm to 6000 mm programmable via HMI |
| Safety Interlocks | Full acoustic fencing with automated pneumatic clamping and emergency braking |
Need a Customized Configuration?
We custom manufacture bobbin sizes, speeds, and line layouts for your plant.
