EMC / EMI SHIELDING
Copper Taping Machine
Precision Electromagnetic Screening & Shielding for Quad & Control Cables

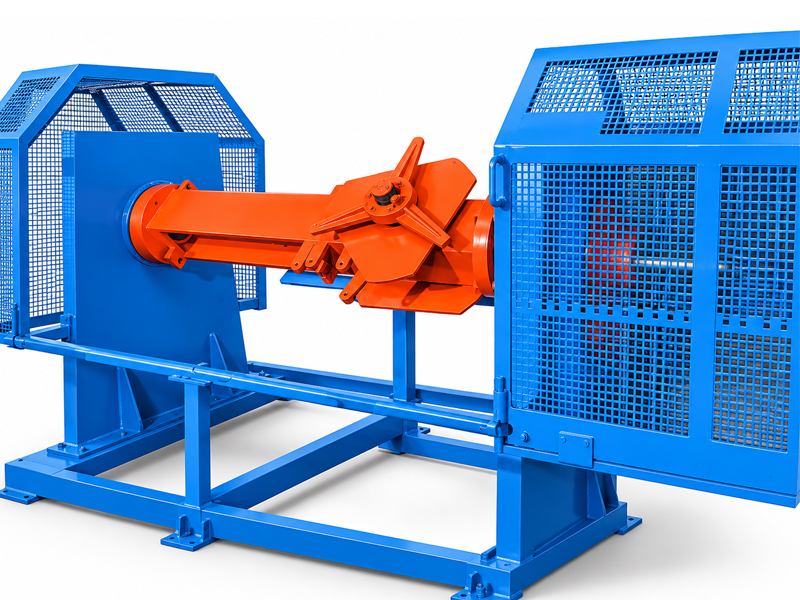

ORIGINAL PRODUCT PHOTO
JSK FACTORY DIRECT
More Images (2 Photos Available)
Key Engineering Advantages
- Low inertia high-balance rotating head eliminating tape creasing
- Adjustable overlap percentage with digital pitch readout
- Automatic optical tape-end detection
AUTHENTIC SPECIFICATIONS & DESCRIPTION
Overview & Application
JSK MACHINES provides high class Copper Taping Armouring Machine. Solution for taping on all type of cable i.e. Quad Cable, Telecommunication Cable, Control Cable, Elastomeric cable and Signal Cable.
Offers superior concentric wrapping of copper foil and screening tapes for critical EMC/EMI shield requirements.
| Technical Specifications: Copper Taping Machine | |
|---|---|
| Taping Material | COPPER TAPE |
| Cable Applications | Railway Quad Cables, Instrumentation, High-Frequency Telecommunication |
| Head Configuration | Single, Double or Multi-Pad Concentric Taping Head |
| Operating Speed | Up to 600 RPM |
| Tape Overlap Ratio | 10% to 50% adjustable via line speed ratio synchronization |
| Pad Size | Up to 600mm |
| Drive Type | Independent Inverter Motor synchronized with line PLC |
Need a Customized Configuration?
We custom manufacture bobbin sizes, speeds, and line layouts for your plant.
